# Gluing ## **Introduction** Gluing is the step before finishing, where glue is applied to the joints for strength and stability. Timber glue comes in various types: polyvinyl acetate (PVA), polyurethane, cyanoacrylate, animal or hide, and epoxy. The main reason to glue your piece is to ensure that the joints are strong, stable, square and future-proof. The gluing process involves: [selecting](#selecting-the-glue) and [sourcing](#buying-the-glue) the appropriate glue, [preparing](#preparing-to-glue) the glue-up, [applying](#applying-the-glue) the glue, [clamping](#clamping) the glued parts, waiting for the glue to dry, and [cleaning](#cleaning-the-glue) off the glue. **Before purchasing any glues make sure they are on the approved materials list or send the relevant MSDS to and request a review.** ## **Selecting the glue** PVA wood glue is recommended for the vast majority of wood working projects. Below are 3 PVA glues recommended for interior use projects, water resistant and waterproof interior/ exterior use projects. ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-M4Hru6khxGwXqWUsxCy%2F-M4HtaEIwekqz7ZWhA4q%2FPva%20glues.png?alt=media\&token=13d43560-f369-42de-ac6b-15b07c14d82b) | PVA recommended | Usage | Assembly time | Drying time | Cost (473ml) | | --------------------- | ------------------------------------------------------------ | ------------- | -------------------------------------------------- | ------------ | | Titebond Original |

Interior project

e.g. side table

| 4 - 6 mins |

30 mins clamped +

12 hrs no handling

| $12.50 | | Titebond II Premium |

Water resistant project

e.g. outdoor furniture

| 3 - 5 mins |

30 mins clamped +

12 hrs no handling

| $17.00 | | Titebond III Ultimate |

Water proof project

e.g. chopping board

| 8 - 10 mins |

30 mins clamped +

12 hrs no handling

| $23.00 | The tabs below provides more detail on the various types of wood glues you may consider. {% tabs %} {% tab title="PVA wood glue" %} PVA wood glue (e.g. Titebond, Gorilla) is a strong, non toxic, water-soluble glue, excellent for any wood work projects. ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-MA-ol8RTp0WaD67vuVD%2F-MA-ve2-l4ZbFkbQlQUC%2Fpva_v2.jpg?alt=media\&token=3d8c5a57-0d4f-4e43-ab3d-6064b35760f4) {% hint style="success" %} **Advantages:** Strong (stronger than timber itself), low cost, non-toxic, no required preparation, fast drying time (30mins - 1hr clamped + 12 hrs no handling), easy to clean off wet glue with damp cloth, and is waterproof (if specified). {% endhint %} {% hint style="warning" %} **Disadvantages:** Fast assembly time (4 - 10mins). Does not act as a filler, and does not adhere if there are gaps, or existing glue/ finish. {% endhint %} {% endtab %} {% tab title="Epoxy" %} Epoxy (e.g. West System, Solid Solutions) is a 2 part glue with a lengthy assembly time, excellent for any wood work projects that need extra time for glueing, such as for veneer laminations. ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-MA-ol8RTp0WaD67vuVD%2F-MA-vjO79BpivwkMxywy%2FWest%20systems_v1.jpg?alt=media\&token=01da8494-de6c-4d95-bcb6-e19866a4d609) {% hint style="success" %} **Advantages:** Lengthy assembly time (10 - 56mins) and fast curing time (6 - 15hrs), depending on hardener used. It can act as a filler, it adheres to existing finishes (except polyurethane) and it is waterproof. {% endhint %} {% hint style="warning" %} **Disadvantages:** Very costly, toxic, requires preparation for both the epoxy (mixing part A + part B) and your project (applying packaging tape to non gluing surfaces). Requires chemicals to clean up wet mixed epoxy residue (e.g. lacquer thinner, acetone, or alcohol) and warm soapy water to clean wet hardener residue. {% endhint %} {% endtab %} {% tab title="Polyurethane" %} Polyurethane glue (e.g. Titebond, Selleys, Sikabond) is a strong glue, excellent for projects that combine timber with other materials such as ceramic, metals, glass and some plastics. ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-MA-ol8RTp0WaD67vuVD%2F-MA-vray1TOOuwh_KzM-%2FPolyeurothene%20glue_v1.jpg?alt=media\&token=7d5fb687-d35c-4a37-8fbe-a2f4c7b36c0d) {% hint style="success" %} **Advantages:** Adheres to most materials, strong, lengthy assembly time (10 - 20mins or until there is excessive foam development) and fast curing time (45mins - 4hrs clamped or until squeeze out becomes firm), works on existing finish and is waterproof. {% endhint %} {% hint style="warning" %} **Disadvantages:** Costly, toxic, does not act as a filler, and does not adhere if there are gaps. Assembly and clamp time are affected by changes in humidity, temperature and moisture content of timber. Requires mineral spirits to clean up wet glue. {% endhint %} {% endtab %} {% tab title="Super glue" %} Super glue/ Cyanoacrylate (e.g. Zap, Starbond) is an excellent glue for wood work projects that requires repairs, fillings, inlays, and temporary clamping pieces (given its poor sheer strength). ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-MA-ol8RTp0WaD67vuVD%2F-MA-vwAX-w9pHCokrcGh%2Fstarbond_v1.jpg?alt=media\&token=9d53a5dd-e7b4-4d6c-aebd-b179dbce0251) {% hint style="success" %} **Advantages:** Fast drying time of 1 - 5 seconds, can be used as a crack/gap filler, easy to clean off by sanding, works on existing finish, and is waterproof. {% endhint %} {% hint style="warning" %} **Disadvantages:** Very costly, toxic, and poor sheer strength. {% endhint %} {% endtab %} {% tab title="Animal/ Hide" %} Animal/ Hide glue (e.g. Titebond, Ubeaut) is a strong, non toxic glue, excellent for wood work projects that requires reversibility (given its capabilities to be warmed up to make adjustments). ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-MA-ol8RTp0WaD67vuVD%2F-MA-w-XYJyWl1WmJd1GD%2FHide%20glue%20_v1.jpg?alt=media\&token=f15fcd57-88f7-484c-b7de-7616597673ff) {% hint style="success" %} **Advantages:** Strong, non toxic, adheres to existing finish and adheres to existing animal/hide glue (when warmed up). {% endhint %} {% hint style="warning" %} **Disadvantages:** Costly, strong smell, not waterproof, and preparation time + working time + curing time vary depending on animal/ hide glue brand. Does not act as a filler, and does not adhere if there are gaps. {% endhint %} {% endtab %} {% endtabs %} ## **Buying the glue** Titebond Original is available to all students and staff in the **MSD Machine Workshop**. If you require Titebond Original in a larger quantity or looking for a different type of wood glue, below are recommended glues and suppliers. {% tabs %} {% tab title="PVA wood glue" %} | Brands | Titebond | | ------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | **Suppliers** |

Carbatec Melbourne

Carroll's Woodcraft

Delta Recycling

Euro Wood Coatings

Sandpaper Plus

Timbecon

Urban Salvage
Timber Revival

| | {% endtab %} | | {% tab title="Epoxy" %} | Brands | West System | Techniglue | | ------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------ | | **Suppliers** |

Carbatec Melbourne

Discount Seamart

Eco Timber Group

Renovators Paradise

Timber Revival

Renovators Paradise

Sandpaper Plus

Urban Salvage

Wooden Boat Centre

|

Boating Central
Carbatec Melbourne
Canoes Plus

CH Smith Marine

Timbecon

| | {% endtab %} | | | {% tab title="Polyurethane" %} | Brands | Titebond | Selleys, Sikabond | | ------------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----------------- | | **Suppliers** |

Carbatec Melbourne

Carroll's Woodcraft

Delta Recycling

Euro Wood Coatings

Sandpaper Plus

Timbecon

Urban Salvage
Timber Revival

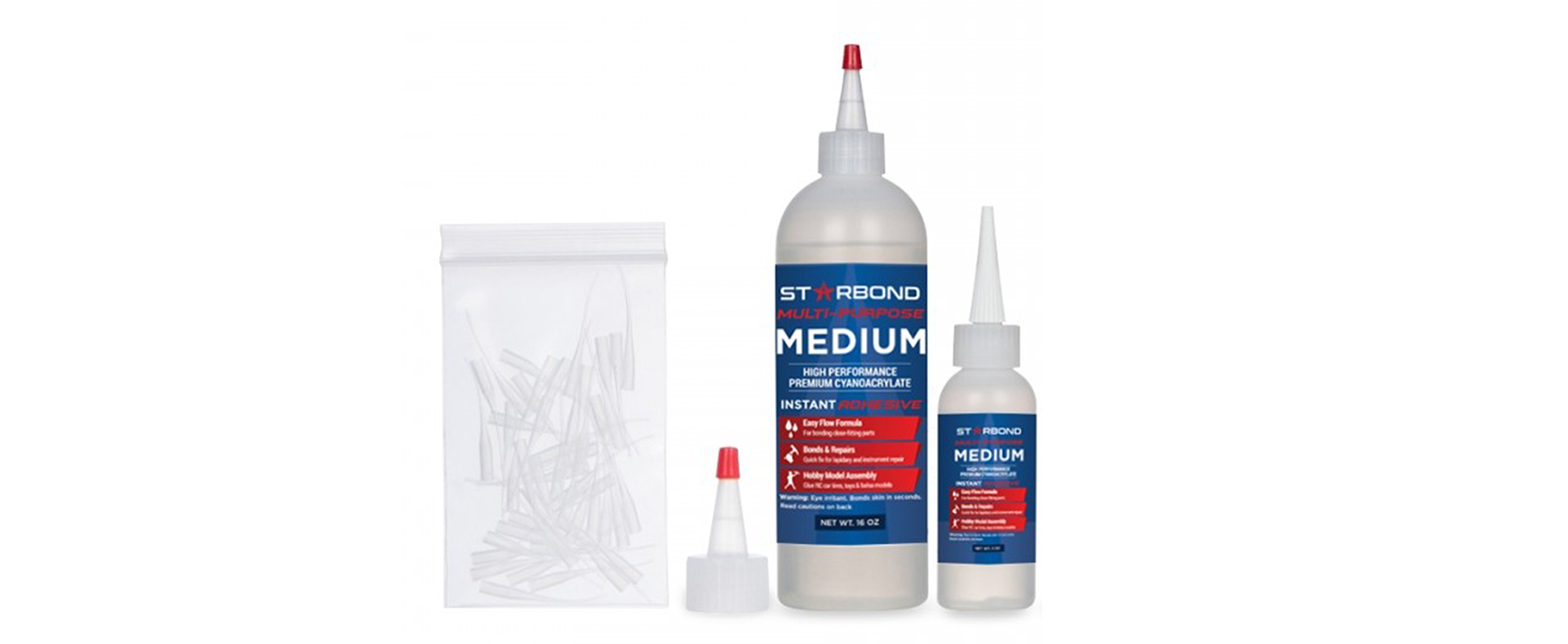

| Bunnings | | {% endtab %} | | | {% tab title="Super glue" %} | Brands | Zap | Starbond | Hot Stuff Glue | Loctite 401 | | ------------- | -------- | ------------------- | ------------------ | -------------------------------------------------------------------- | | **Suppliers** | Timbecon | Carroll's Woodcraft | Carbatec Melbourne |

Bolts & Industrial Supplies

BSC Insdustrial

Repco

| | {% endtab %} | | | | | {% tab title="Animal/ Hide" %} | Brands | Titebond | Ubeaut | | ------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------ | | **Suppliers** |

Carbatec Melbourne

Carroll's Woodcraft

Delta Recycling

Euro Wood Coatings

Sandpaper Plus

Timbecon

Urban Salvage
Timber Revival

| Carbatec Melbourne | | {% endtab %} | | | | {% endtabs %} | | | ## **Preparing to glue** **Get your work ready -** Ensure all the gluing faces, edges and joints are clean and free from gaps. Consider adding masking tape along the joints that are hard to access (e.g. inside of a box) for glue squeeze out. **Set up your work bench -** Clear your work bench, place a plastic sheet on the bench to protect it from glue, select and organise the appropriate clamps, the appropriate glue and application tools (e.g. brush). **Do a dry run -** Before applying any glue, clamp up your work to ensure that all the joints are pressed tightly together. Remove the clamps and keep them organised, keeping in mind that you need to glue within the 'working time' of the glue (e.g. Titebond Original has a 4 - 6 minute working time/ assembly time). {% hint style="success" %} Ensure that surfaces being glued are touching. If they are gaps, no matter how much glue is applied, surfaces will not bond. {% endhint %} ## **Applying the glue** **Application tool -** Use a roller or a brush (available in the **MSD Machine Workshop**) **Amount to apply -** Apply glue evenly to all surfaces being glued. Too little glue will cause a weak joint, and too much glue will result in a mess and will waste the glue. ## **Clamping** There are various clamps available in the **MSD Machine Workshop** for gluing. ![1 Parallel clamp, 2 Band clamp, 3 Corner clamp, 4 F-clamp, 5 Sash clamp](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-M4Sfv5T-q7FYUvuzkEx%2F-M4SkG34tm_U6SUS6J7x%2FAll%20Clamps_v2.jpg?alt=media\&token=c116fedc-4af2-4655-8310-e8a88feb94ed) For more information on the various clamps available in the MSD Machine Workshop, [click here](https://ms-kb.msd.unimelb.edu.au/machine-workshop/machinery-materials/equipment/hand-tools/clamps). Below are some tips on how to clamp **flat boards, laminated sheets and mitred edges**. ### **Flat boards** When clamping a flat board with glued edges (e.g. a table top), equally space clamps (Parallel or Sash clamps) on the bench and on top of your work piece. The equal spacing and clamping pressure applied on both the top and bottom, will reduce the risk of your workpiece bowing. When using Sash clamps, use timber blocks between the metal vice to avoid damaging your workpiece. ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-M5-zBIZ4AQao7M-BkL8%2F-M50BpAueZ3q1clM_s5C%2FClamping_parallel%20clamp.jpg?alt=media\&token=fddad73f-6905-4997-a2d9-7c0a6ce001f9) ### **Laminated sheets** When laminating sheets (e.g. a contour site model to CNC), equally space F-clamps around the outside of your workpiece to pressure between the top and the bottom. Keep the sheets aligned using Parallel clamps. Apply equal pressure across the entire top/ bottom surface using the concrete blocks available in the MSD Machine Workshop. {% hint style="info" %} Laminating sheets using clamps can be tricky to achieve. If laminating more than 2 sheets, use the Vacuum Bag available in the MSD Machine Workshop. {% endhint %} ### **Mitred edges** When clamping mitred edges (e.g. a box), use a band clamp around the top and around the bottom of your workpiece. If your workpiece is narrow (e.g. a picture frame), 1 band clamp will suffice. Alternatively, a continuous strip of masking tape can be used in tension around your workpiece acting as a clamping device. ![](https://1044287416-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-M3JlcKYAsodrf6BU0RY%2F-M5-zBIZ4AQao7M-BkL8%2F-M50CgcASX24iA2X2O1f%2FClamping_bandclamp_narrow_v2.jpg?alt=media\&token=de7034de-5822-448d-9c29-ffd35f16aa82) ## **Cleaning the glue** It is inevitable to have glue squeeze out when glueing, and cleaning up the excess glue is a critical part of the part of the process. It will ensure that the finish (e.g. oil) can be absorbed in the timber to protect it. There are different methods for cleaning up excess glue. Below are 3 suggestions to clean up PVA. * **Recommended Method: Use a damp cloth while glue is wet. Once dry, sand excess glue.** * Wait 24 hours, scrape off glue and sand excess. * Wait 30 minutes to 1 hour, or until glue is tacky, and peel off glue. {% hint style="success" %} Ensure that all the surfaces and corners are free from glue so that the finish can be absorbed. {% endhint %} ## **What is next?** Double check that all surface is free from any glue. If it is, then it’s time to start finishing! --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://ms-kb.msd.unimelb.edu.au/machine-workshop/making/step-by-step/04-glueing.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
